Smoke Circulation Filtration System-Pulse Backblow Dust Collector-3D Printing Dust & Fume Filtration-Products-Xinxiang Filter

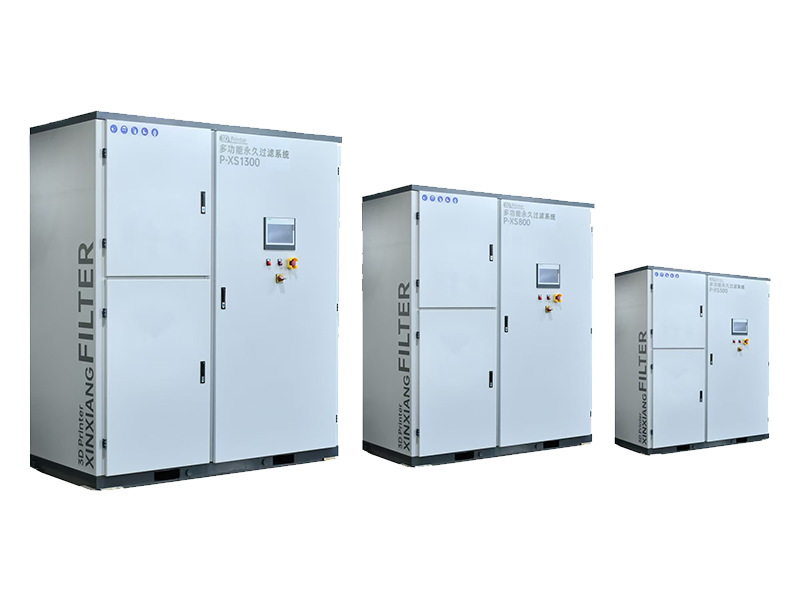

Smoke Circulation Filtration System is applicable to industries including 3D printing, laser cladding and powder metallurgy. Specially designed for high-risk working conditions involving metal powder, flammable and explosive dust, the system integrates multiple functions such as gas washing, pulse dust cleaning, oxygen content detection, pre-coating gas washing, differential pressure monitoring, temperature detection and dust passivation to realize full-process safe control of dust.

System parameters and dimensions can be customized according to air volume and printing area.

Core Configuration & Technical Advantages

Module Technical Features

Module	Technical Features
Cyclone Dust Collector	Pre-filter large particle dust with removal efficiency ≥95%
Sintered Plate Filter	Anti-static design with resistance ≤10⁶Ω and excellent static conductivity
Reverse Air Cleaning Device	Key control components adopt imported high-performance parts
Automatic Butterfly Valve	Custom parts for 3D printing with high operation stability
Dust Bin & Ash Discharging Device	Automatic monitoring via level sensor to remind timely bin replacement
H13 Filter (Optional)	Filtration efficiency ≥99.99% (0.3μm), suitable for 3D printing environments and outdoor emission
Inertant Detection & Filling Device	Ensure inerting effect and improve safety
Gas Washing System	Reduce dust explosion risk and protect filter elements
Imported Variable Frequency Fan	Intelligent frequency conversion stabilizes system air pressure and wind speed to improve printing quality
Electronic Control System	PLC and main electrical components adopt world-class brands with high reliability
Wind Speed Detection & Control System	Real-time adjustment of airflow field environment
Oxygen Content Detector	Guarantee safe system operation
Pipeline, Outer Protection & Frame	Robust overall structure adaptable to industrial environments
