Description:

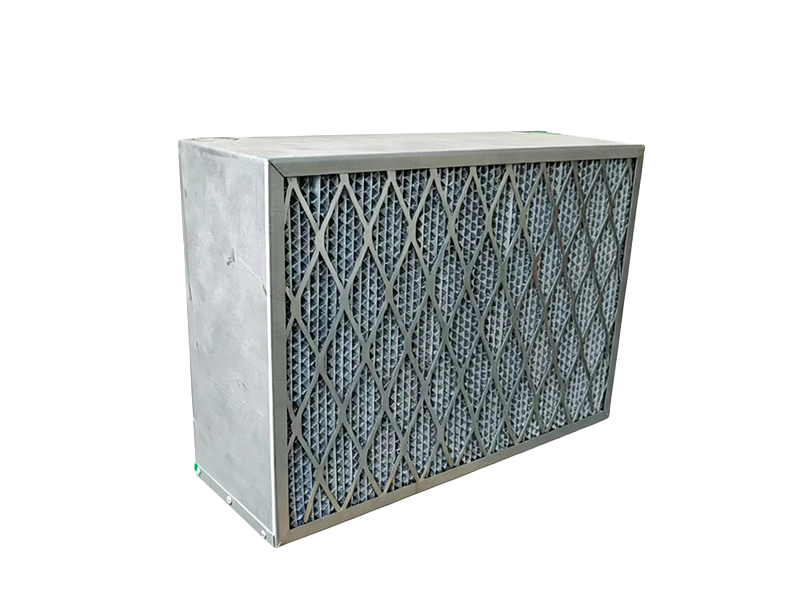

Avionics Bay Air Water Removal Filter Cartridges are key components in aircraft Environmental Control Systems (ECS) specially designed to remove moisture from compressed air. They are generally installed on the supply pipelines of avionics bay cooling systems and used together with pre-filters. Electronic equipment is highly sensitive to humidity; high-humidity air entering the avionics bay may produce condensed water, resulting in circuit board corrosion and short-circuit faults. Based on membrane separation principles, this cartridge separates moisture from engine bleed air or air conditioning supply air by utilizing the membrane’s selective permeability to water vapor and air, supplying dry protective gas to the avionics bay.

Core Technical Advantages:

Membrane-based water removal: Hollow fiber membranes feature selective permeability to water vapor, removing moisture from compressed air without extra energy input.

Integrated condensation separation: Some models integrate gas-water separation structures. Liquid water in compressed air is separated first via centrifugal force or gravity, and residual water vapor is eliminated by membrane modules for higher efficiency.

Maintenance-free design with no moving parts: Membrane assemblies contain no mechanical moving parts, offering far superior reliability and service life compared with traditional mechanical separators.

Lightweight integration potential: Sharing membrane separation assemblies with the oxygen-nitrogen separation stage of fuel tank inerting systems reduces overall system weight and penalty loss.

Working Condition Matching Table:

Application Fields:

Air supply dehumidification for air conditioning / cooling systems in civil aircraft avionics bays

Dry purge gas treatment for aviation electronic equipment cabinets

Environmental control for radar bays and avionics bays

High-precision dehumidification of compressed air systems

Dry pre-treatment of gas for instruments and meters

FAQ:

Q1: What is the relationship between water removal cartridges and pre-filters?
A: They are generally installed in series: pre-filters are placed upstream to intercept large particles, while water removal cartridges downstream eliminate moisture. Together they protect the avionics bay from particle and water vapor contamination.

Q2: Do water removal cartridges require replacement?
A: Yes. Membrane assemblies may suffer efficiency degradation due to contamination clogging or aging, and shall be replaced in accordance with maintenance plans or performance attenuation indicators.
