Description

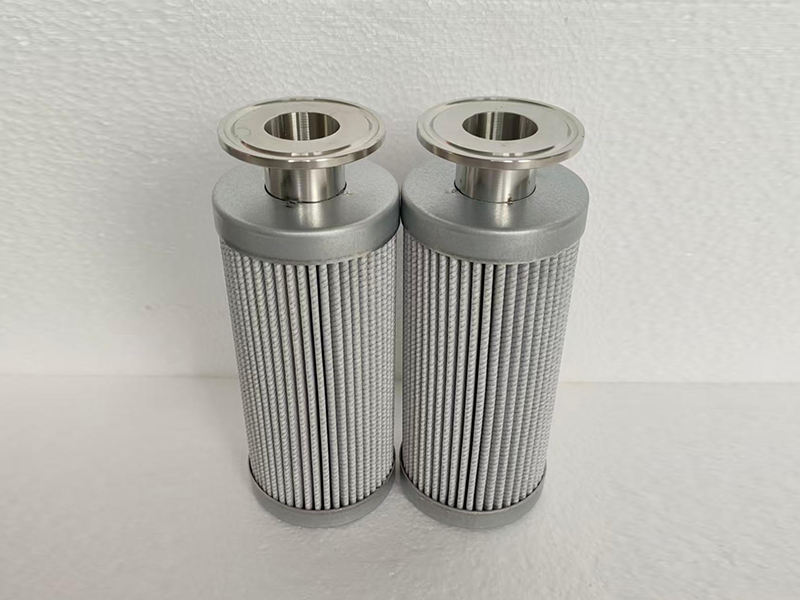

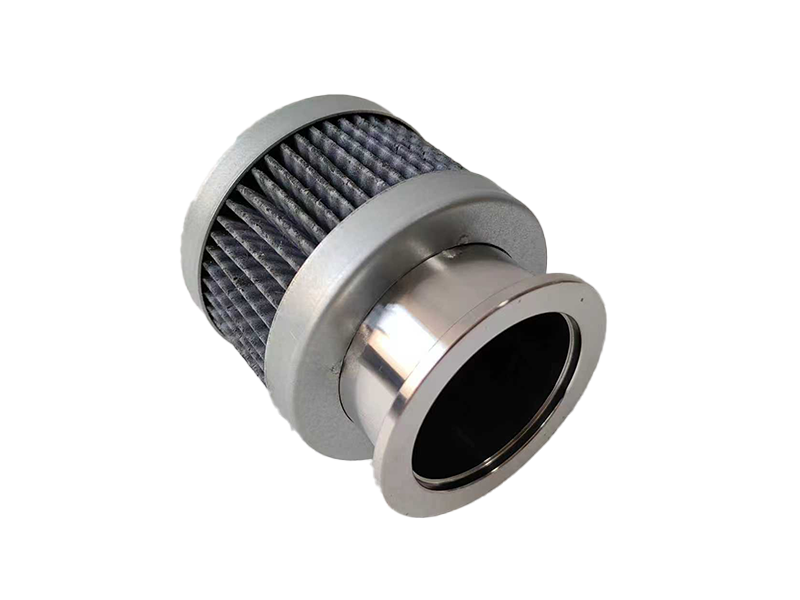

Quick-clamp flame-retardant antistatic filter cartridges adopt quick-opening V-clamps as mounting interfaces. Stainless steel quick clamps tightly fasten filter end caps to equipment ports, enabling rapid locking and release without tools. This type of connection is widely applied in food and pharmaceutical industries, and has been gradually adopted by high-end 3D printing equipment and powder processing systems in recent years.
This filter media undergoes composite flame-retardant and antistatic treatment, reaching UL94 V-0 flame retardancy grade with surface resistance ≤10⁹Ω. Compliant with EN 1822 standard, it achieves H13 filtration grade with ≥99.95% filtration efficiency for 0.3μm particles and initial resistance ≤220Pa. Featuring quick disassembly and reliable sealing, the quick-clamp interface is ideal for working conditions requiring frequent filter replacement.
Core Technical Advantages
Fast disassembly with quick V-clamp: The stainless steel quick clamp is equipped with a handle for manual locking and opening without tools, drastically cutting equipment downtime.
Good interchangeability of standard interface: The quick-clamp interface complies with ISO standards, allowing interchangeable use of filter cartridges and filter housings from different brands, facilitating spare parts management and eliminating single-supplier restrictions.
Dual safety protection: Dual protection from nano flame retardants and carburized surface treatment delivers V-0 flame retardancy and surface resistance ≤10⁹Ω. Stainless steel clamps and grounding systems form a complete static conduction path.
Flame-retardant antistatic membrane filter media: The substrate is flame-retardant treated, covered with a PTFE microporous membrane embedded with a carbon powder conductive layer, featuring high filtration precision, low dust adhesion and excellent ash cleaning performance.
Working Condition Matching Table
| Applicable Equipment | Interface Specification | Filtration Grade | Flame Retardancy Grade | Clamp Material | Recommended Replacement Cycle |
| Custom High-End SLM Equipment | 1.5"/2" Quick Clamp | H13 | V-0 | 304 Stainless Steel | 1500–2500 h |
| Powder Processing Systems | Standard Quick Clamp | H13 | V-0 | 304 Stainless Steel | Based on Differential Pressure |
| Central Filtration Units | Quick Clamp Connection | H13 | V-0 | 304 Stainless Steel | 12–24 Months |
Application Fields
Custom SLM Equipment
Imported High-End Metal 3D Printers
Powder Processing Systems:
Exhaust Filtration for Powder Recovery Devices
Dust Removal for Powder Sieving Machines
Safety Protection for Powder Cleaning Stations
High-Frequency Printing of Highly Flammable Materials:
Mass Production of Aluminum Alloys
Magnesium Alloy Printing
R&D Scenarios with Frequent Material Switching
Case & Data Verification
Case: Application of Quick-Clamp Safety Filter Cartridges in a 3D Printing Powder Processing System
A 3D printing powder recovery system processing aluminum powder required frequent filter replacement (approximately once a week). The original bolt-fixed filters took 15 minutes to replace. After switching to quick-clamp flame-retardant antistatic filter cartridges with V-0 flame retardancy and surface resistance of 7.8×10⁸Ω, the tool-free stainless steel clamps cut replacement time to only 2 minutes, with no static electricity or fire incidents occurring.
FAQ
Q1: How to confirm the quick clamp is fully tightened?
A: The quick clamp is fitted with an eccentric handle. Tightening is complete when the handle can be easily pressed to the stop position with sufficient clamping force. Adjust the clamp bolt if the handle feels overly tight or loose.
Q2: How to select sealing gaskets for quick-clamp interfaces?
A: Silicone gaskets for general use, fluoroelastomer gaskets for high temperature and corrosion resistance, and PTFE gaskets for strong corrosion resistance. Fluoroelastomer gaskets are recommended for aluminum and magnesium alloy printing.
Q3: Are quick-clamp filter cartridges suitable for aluminum alloy printing?
A: Yes. Flame-retardant antistatic quick-clamp filters are a safe choice for aluminum alloy printing. The quick-clamp interface enables fast disassembly, ideal for aluminum alloy R&D and mass production requiring frequent filter changes.

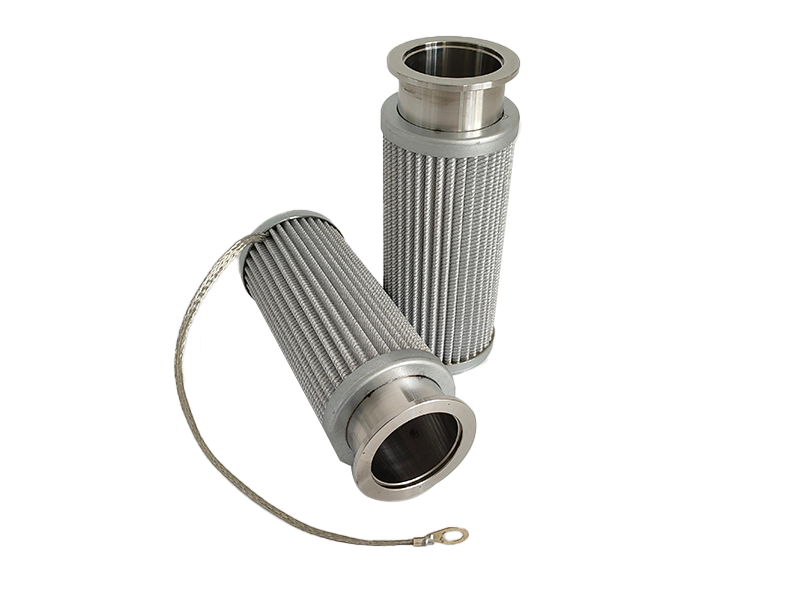

Q4: How is static electricity conducted to ground in quick-clamp filter cartridges?
A: Static electricity transfers sequentially from the filter media conductive layer, stainless steel mesh layer, stainless steel quick clamp to the equipment grounding wire. Ensure good electrical conductivity between the clamp and equipment, as well as reliable grounding wiring.
