Xinxiang Filter

Description:

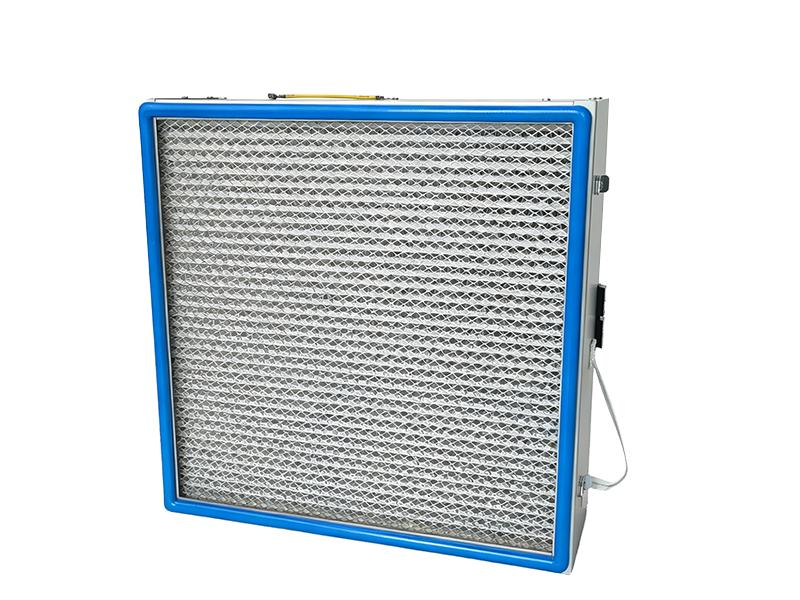

Replacement square filters for EOS M280 are medium-efficiency filter elements specially designed for M280 series metal 3D printing equipment manufactured by Germany’s EOS, used to filter submicron metal fumes generated during printing. While maintaining 100% structural interchangeability with original filters, this product adopts imported glass fiber media to deliver F9-grade filtration performance.

Complying with EN 779 / ISO 16890 standards, this product achieves a counting efficiency of ≥85% for particles ≥0.4μm and initial resistance ≤150Pa, serving as an ideal replacement solution for the fume filtration system of EOS M280 printers.

Core Technical Advantages:

Precise structural interchangeability: Overall dimensions fully match original square filters (tolerance controlled within ±0.5mm) with identical sealing interfaces, enabling direct installation without any equipment modification.

Metal fume interception: Imported ultra-fine glass fiber composite media can trap 0.1–2μm fumes produced from printing titanium alloys, aluminum alloys, stainless steel and other metals, effectively protecting laser lenses and optical systems.

High dust holding capacity design: The square pleated structure expands filtration area within limited space, with a single filter offering 10–15 m² of filtration area, suitable for 24-hour continuous printing operations.

Low-resistance operation: Initial pressure drop ≤150Pa imposes minimal load on the exhaust system and stabilizes pressure inside the build chamber.

Working Condition Matching Table:

Application Fields

Printing Materials Compatible with EOS M280/M270:

Titanium Alloy (Ti6Al4V)

Stainless Steel (316L, 17-4PH)

Aluminum Alloy (AlSi10Mg)

Cobalt-Chromium Alloy (CoCr)

Maraging Steel (MS1)

Typical Application Scenarios:

Small-batch production of aerospace components

Additive manufacturing of medical implant devices

Fabrication of conformal cooling channels for molds

Material research in scientific research institutions

Case & Data Verification:

Case: Square Filter Replacement at a 3D Printing Service Provider

A 3D printing service provider operates five EOS M280 printers mainly for manufacturing titanium aerospace components. Original square filters feature long procurement lead times (3–4 months) and high costs. After adopting the replacement square filters, the measured initial pressure drop is 128Pa, which rises to 198Pa after 1000 hours of continuous operation. The surface finish of printed parts matches that achieved with original filters without fume-induced defects, and the cost per filter is reduced by approximately 50%.

FAQ

Q1: How is the dimensional accuracy of replacement square filters guaranteed?

A: The filters are mapped 1:1 from original OEM parts with key dimensional tolerances controlled within ±0.5mm. Flatness of sealing surfaces is inspected with special measuring tools to eliminate bypass leakage after installation.

Q2: Are square filters interchangeable with cylindrical filter cartridges?

A: No. The M280 is equipped with a square filter chamber, which differs from the cylindrical filter chamber of EOS M290/M400; the two types cannot be swapped. Confirm your equipment model before placing orders.

Q3: What is the recommended replacement cycle for square filters?

A: Under normal printing conditions (titanium alloy, stainless steel), the suggested replacement cycle is 800–1200 hours. Monitor the differential pressure across the filter as an indicator — replacement is required when the pressure difference doubles the initial value (around 300Pa).

Q4: Will using replacement filters void the equipment warranty?

A: Using third-party replacement filters will not invalidate the equipment warranty as long as the filters meet the filtration precision and pressure drop requirements specified by the machine manufacturer. Retain purchase and inspection records for verification purposes.
