Xinxiang Filter

Description:

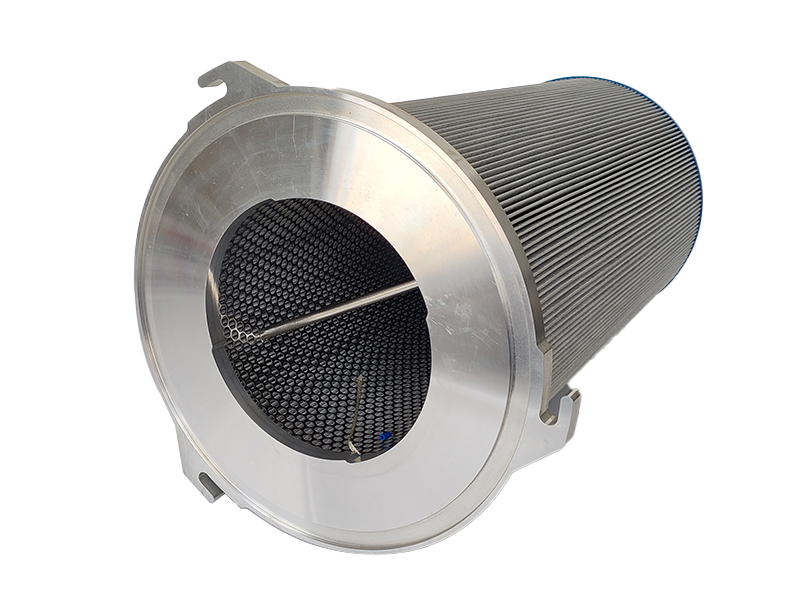

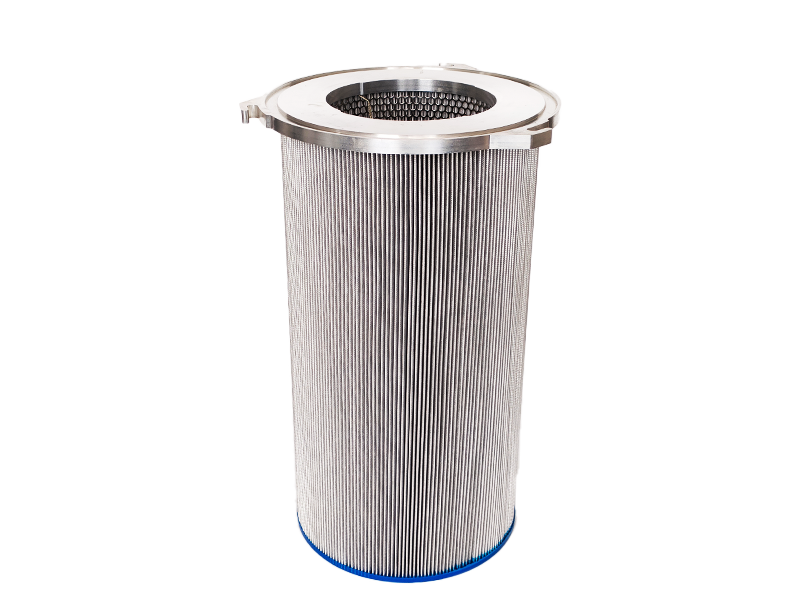

Replacement filter cartridges for Concept Laser M2 are dedicated filter elements developed for M2 series metal 3D printing machines manufactured by Germany-based Concept Laser (now a subsidiary of GE Additive).

Fully interchangeable with original OEM filters, this product adopts imported glass fiber media to deliver F9 filtration performance. Compliant with EN 779 / ISO 16890 standards, it achieves ≥85% particle counting efficiency for particles ≥0.4μm with initial resistance ≤160Pa.

Core Technical Advantages:

Custom-fit dimensional matching: Precise measurement tailored to Concept Laser M2 filter chambers with dimensional tolerance controlled within ±0.3mm; sealing gaskets perfectly fit original mounting grooves.

Compatible with LaserCUSING process: Concept Laser’s proprietary LaserCUSING technology features unique melt pool control and distinct fume generation characteristics compared with other printers. Optimized dust holding structure of filter media better adapts to exhaust performance of M2 machines.

High-precision pleating technology: Advanced pleating process ensures evenly spaced pleats without collapse, offering large filtration area, smooth airflow and low pressure drop.

Multiple precision options: F7, F8 and F9 grades optional to match diverse printing materials and processes; membrane-coated version reaches F9+ grade.

Working Condition Matching Table:

Application Fields:

Concept Laser M2 Series Machines:

Concept Laser M2 (Single Laser)

Concept Laser M2 cusing (Upgraded Version)

M2 Series 5

Applicable Printing Materials:

Titanium Alloy (Ti6Al4V)

Stainless Steel (316L)

Cobalt-Chromium Alloy (CoCr)

Nickel-Based Alloys (Inconel 625 / 718)

Typical Applications:

Aerospace & Aviation Components

Medical Dental & Orthopedic Implants

Jewelry Molds

Scientific Research & Development

Case & Data Verification:

Case: Filter Replacement Project for Concept Laser M2 at a Medical Device Manufacturer

A medical device manufacturer uses Concept Laser M2 printers to fabricate dental crowns, scaffolds and other medical parts. The original OEM filters need to be imported from Europe with a long lead time of 2–3 months. After switching to domestic replacement filters, the installation sealing test passed successfully. The initial pressure drop is 145Pa, and the pressure rise only reaches 215Pa after 800 hours of continuous printing, with zero fume contamination on printed parts. The delivery cycle is shortened to 7–10 days, and procurement costs are reduced by around 45%.

FAQ

Q1: Are Concept Laser M2 filters interchangeable with filters of other brands?

A: No. Concept Laser M2 features unique filter chamber dimensions and interface design different from EOS, SLM Solutions and other brands; dedicated size-matched filters must be adopted.

Q2: Will replacement filters affect the LaserCUSING process of M2 machines?

A: No. The replacement filters meet the F9 filtration precision and resistance requirements specified by the equipment, and will not interfere with chamber airflow and pressure control.

Q3: Are filters interchangeable between Concept Laser M2 and M2 cusing?

A: Basically interchangeable. M2 cusing is the upgraded variant of M2 with unchanged filter chamber design, so the same filter fits both models. Confirm your exact machine model before ordering.

Q4: How to guarantee the sealing performance of replacement filters?

A: The filter end cap is equipped with O-rings identical to OEM specifications. Ensure the seal ring is intact and free of twisting or deformation during installation. A smoke leak test can be conducted after mounting for sealing validation.
